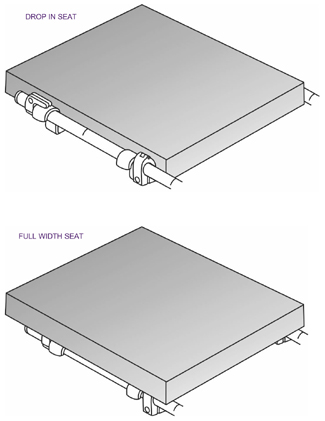

Designed 2-3/4" narrower than the chair width, to fit between the seat rails
Rectangular base
Full Width Seat
Designed to fit above the seat rails
Rectangular base
Contour Options
Anti-Thrust Seat
Dense foam creates a rise in the front of the seat to help hold the pelvis back in the seat
Top layers of visco foam add optimal support and comfort
The standard dimension for D = 1/3 of functional depth, unless you specify otherwise
Standard Taper Length - 2"
Fully customizable if needed
Full width or drop in
Anti-Thrust
C
F
D
Shallow (1/2" riser, 1/2"wedge)
2.5
2
Medium (1" riser, 1/2" wedge)
3
2
Deep (1" riser, 1" wedge)
3.5
2.5
Contoured Seat with Leg Wells
Dense foam base is used to support adductors and abductor
Top layers of visco foam add optimal support and comfort
The standard dimension for D = 1/3 of functional depth, unless you specify otherwise
Standard Taper Length - 2"
Fully customizable if needed
Full width or drop in
Contoured with Leg Wells
C
F
G
H
D
Shallow (1/2" riser, 1/2"wedge)
2.5
1.5
2
2.5
Medium (1" riser, 1/2" wedge)
3
1.5
2.5
3
Deep (1" riser, 1" wedge)
3.5
1.5
2.5
3.5

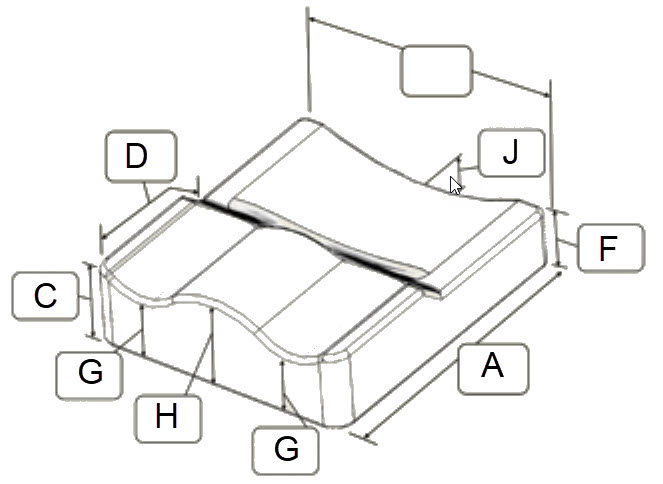

Contour Seat with Pelvic and Leg Wells
Dense foam base is used to support anti-thrust feature, as well as adductors and abductor
Top layers of visco foam add optimal support and comfort
The standard dimension for D = 1/3 of functional depth, unless you specify otherwise
Standard Taper Length - 2"
Fully customizable if needed
Full width or drop in
Contoured with Pelvic and Leg Wells
C
F
G
H
I
J
D
Shallow (1/2" riser, 1/2"wedge)
2.5
2
2
2.5
0.5
1.5
Medium (1" riser, 1/2" wedge)
3
2
2.5
3
0.5
1.5
Deep (1" riser, 1" wedge)
3.5
2.5
2.5
3.5
0.5
1.5

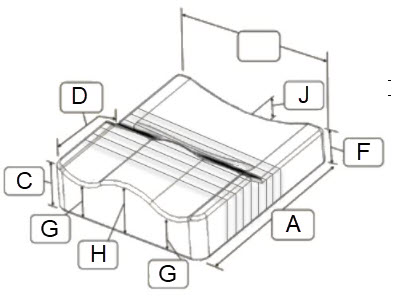

Depth Adjustable Contoured Seat
Contoured seat with pelvic well that provides growth adjustment
Top layers of visco foam add optimal support and comfort
Six 1" removable growth blocks to maintain the correct relationship of back-to-pelvic ledge as user grows or changes
Zipper access makes adjustment easy
Can be ordered in custom dimensions
Full width or drop in
Depth Adjustable Contoured
C
F
G
H
I
J
D
Shallow (1/2" riser, 1/2"wedge)
2.5
2
2
2.5
0.5
1.5
Medium (1" riser, 1/2" wedge)
3
2
2.5
3
0.5
1.5
Deep (1" riser, 1" wedge)
3.5
2.5
2.5
3.5
0.5
1.5

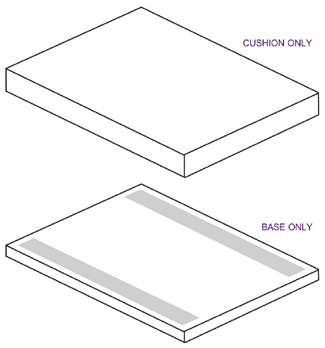

Cushion Only or Base Only
Cushion Only is 1" soft visco foam laminated over 1" medium visco foam, with reverse Dartex® and vinyl cover that has hook and loop attachment on the bottom side
Base Only is 1/2" plywood with 1/4-20 t-nuts, with vinyl cover that has hook and loop attachment on the top side
Leg Length Differential Seat
Shortens left or right side of seat to adjust for leg length discrepancies
Abductor t-nuts patterns are available on bases

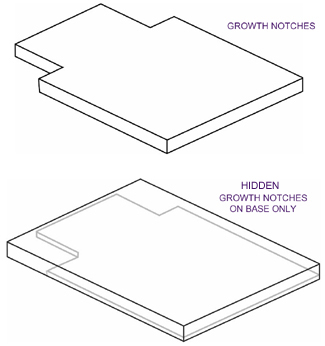

Growth Notches On Seat
Rear cutouts allow for seat to be positioned between the uprights of the wheelchair
Seat may be moved forward to create more seat depth
Base Only Notches are hidden when not needed, foam and cover are not notched. Compress foam and cover to form notches
I Seat
Center cutouts in base allow for seat to be positioned on a folding wheelchair frame
Please provide cutout dimensions
Custom Seat Cover Modifications
2" hook and loop seat attachment
Dartex® (knit side out)
Gusset change for Foam-In-Place
TheraVent air mesh fabric

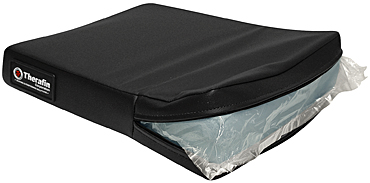

Duraflex™ Liner
Custom Seat Foam Modifications
Additional Poly Foam:
1/2" Poly Foam
1" Poly Foam
1-1/2" Poly Foam
2" Poly Foam
Additional Visco Foam:
1/2" X-Soft, Soft or Medium Foam
1" X-Soft, Soft, Medium or Firm Foam
1-1/2" X-Soft, Soft or Medium Foam
2" X-Soft, Soft, Medium or Firm Foam
2-1/2" X-Soft, Soft or Medium Foam
3" X-Soft, Soft, Medium or Firm Foam
Additional Pudgee Foam:
1/2" Foam
1" Foam
Gel Overlay:
Dimensions™ Gel, 14" x 14" or less
Dimensions™ Gel, Greater than 14" x 14", up to 18" x 18"
Dimensions™ Gel, Greater than 18" x 18", up to 20" x 20"
